Call CAPTCHA
What is a Call CAPTCHA?
A Call CAPTCHA is a voice security feature that helps protect your phone system from spam and robocalls. Similar to the CAPTCHAs you encounter on websites (e.g., "I'm not a robot" checkboxes), Call CAPTCHA challenges the caller with a simple test—like pressing a specific key—to confirm that the caller is human before allowing the call to continue.
Example: A business sets up a Call CAPTCHA on its main support line. When someone calls in, they hear a message like: “Please press 7 to continue.”If the caller presses the correct key, the call is routed to the support team. If they fail or do not respond, the call is disconnected or routed to a voicemail or holding queue.
This helps prevent robocalls from clogging up the system and ensures that only legitimate callers get through.
Creating a Call CAPTCHA

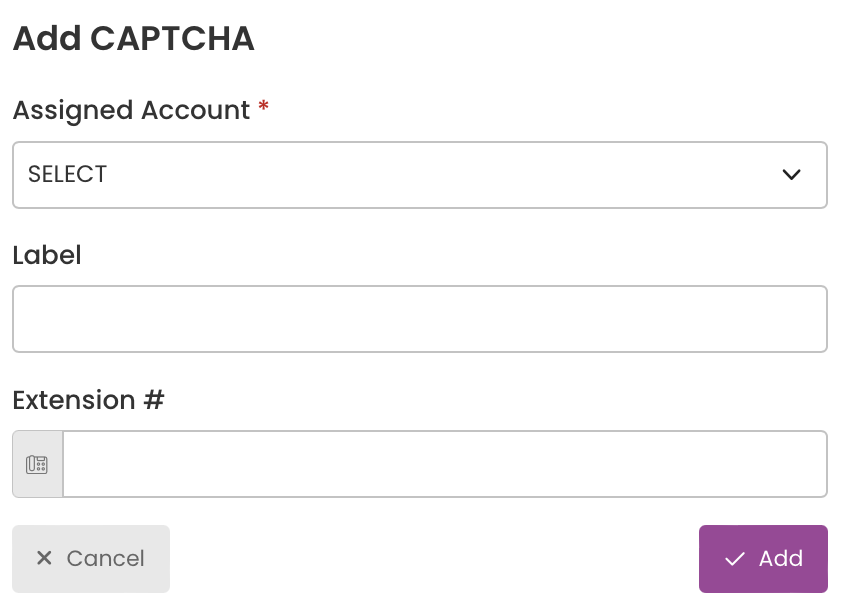

1. From the main menu on the left, navigate to: "UC Admin" → "Settings & Security" → "CAPTCHA"2. Select “+ Add CAPTCHA” in the upper-right corner.3. Complete the form with the following required information:
5. Once the CAPTCHA is created, you’ll be redirected to a page where you can further customize it (see Step 3 under "Managing an Existing CAPTCHA" below for more on available settings).
Note: While an extension number isn’t required to create the CAPTCHA, it must be assigned later for the CAPTCHA to be usable in a call flow.
Managing an Existing CAPTCHA

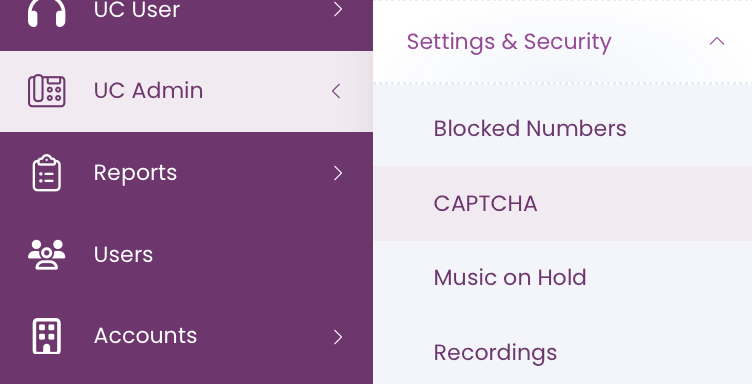

1. From the main menu on the left, navigate to: "UC Admin" → "Settings & Security" → "CAPTCHA"

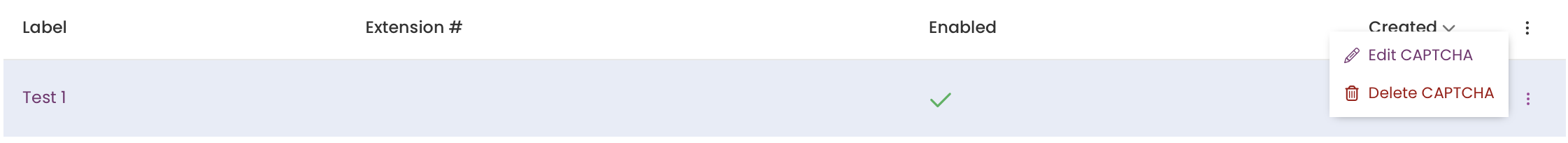

2. From the list of existing CAPTCHAs, select the CAPTCHA label or the three vertical dots to open its settings.3. You'll have access to several configuration tabs:
- General
- Label: Editable name of the CAPTCHA
- Description & Notes: Optional fields for internal reference
- Extension Number: Phone extension tied to this CAPTCHA
- Dialing Address: How the CAPTCHA can be reached internally
- Enable/Disable Toggle: Turn the CAPTCHA on or off
- Advanced
- Passed Destination: Where to send the caller if they pass the CAPTCHA
- Failed Destination: Where to send the caller if they fail the CAPTCHA
- CDR Tags (Passed/Failed): Tags for reporting and analytics based on outcome
- Webhook: Optional integration point to trigger external systems upon interaction
- Dependency Tree
- Visual map showing how this CAPTCHA is linked to other features or extensions within the system.
Be sure to click “Update” at the bottom of the screen to save your changes before navigating away. Related Articles
