Manually Provisioning a ReadyNet LTE520

Manually Provisioning a ReadyNet LTE520

ReadyNet LTE520 Settings

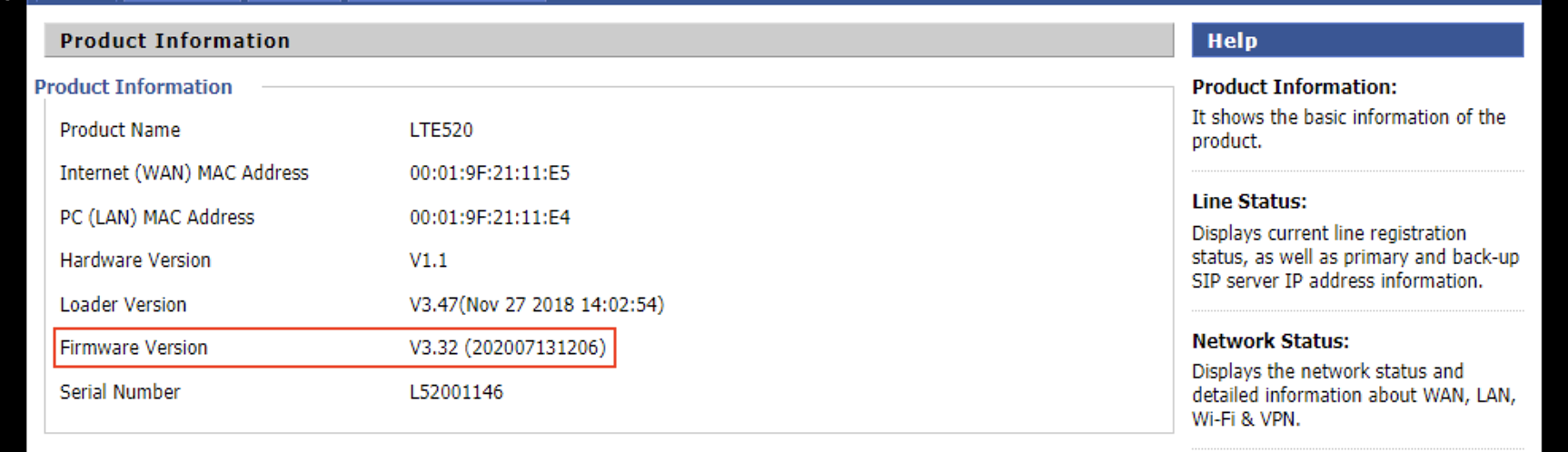

  1. Minimum Firmware Version: v3.32 - Released in 2020

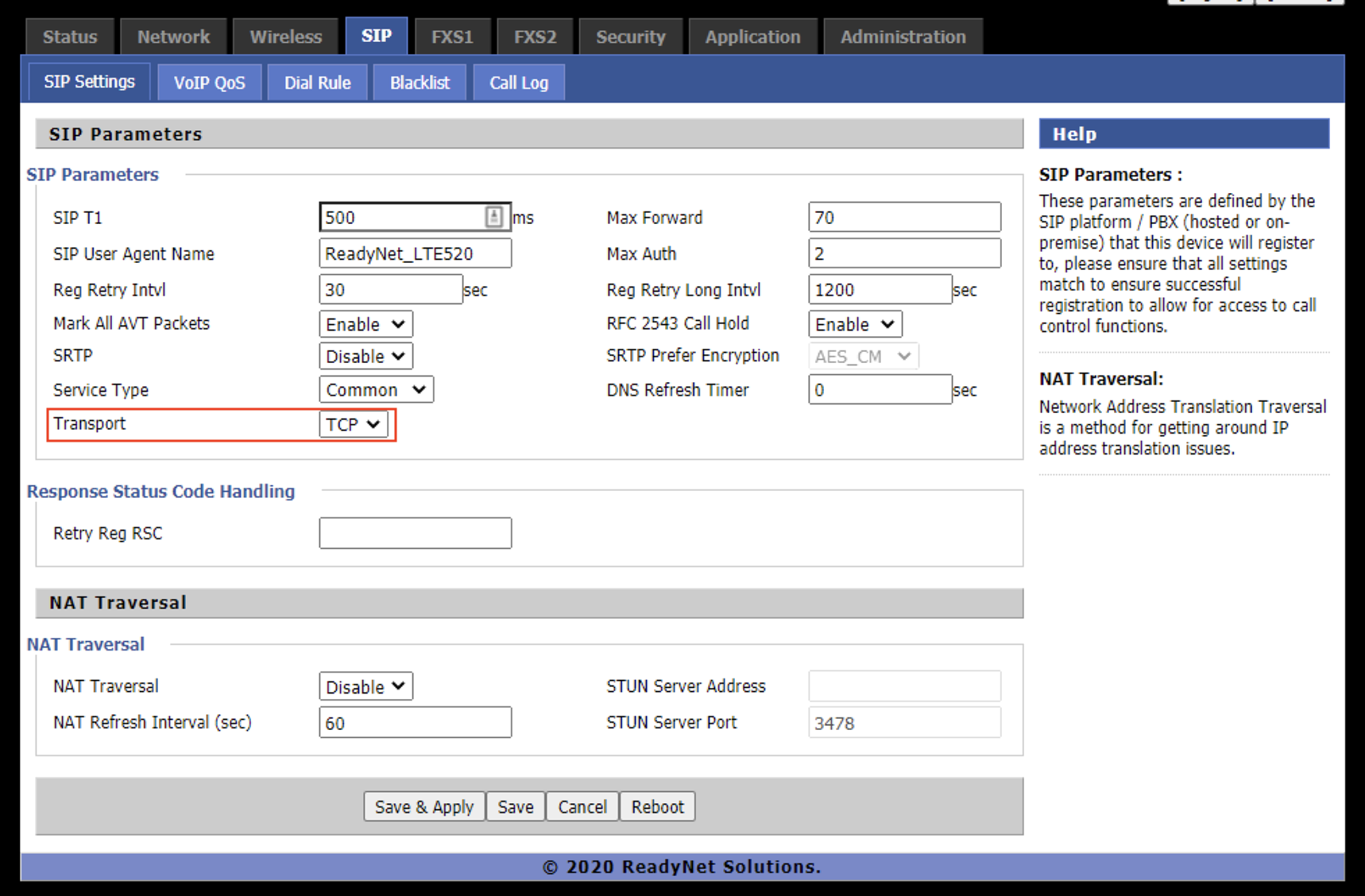

  1. SIP Transport: TCP (UDP will NOT function!)

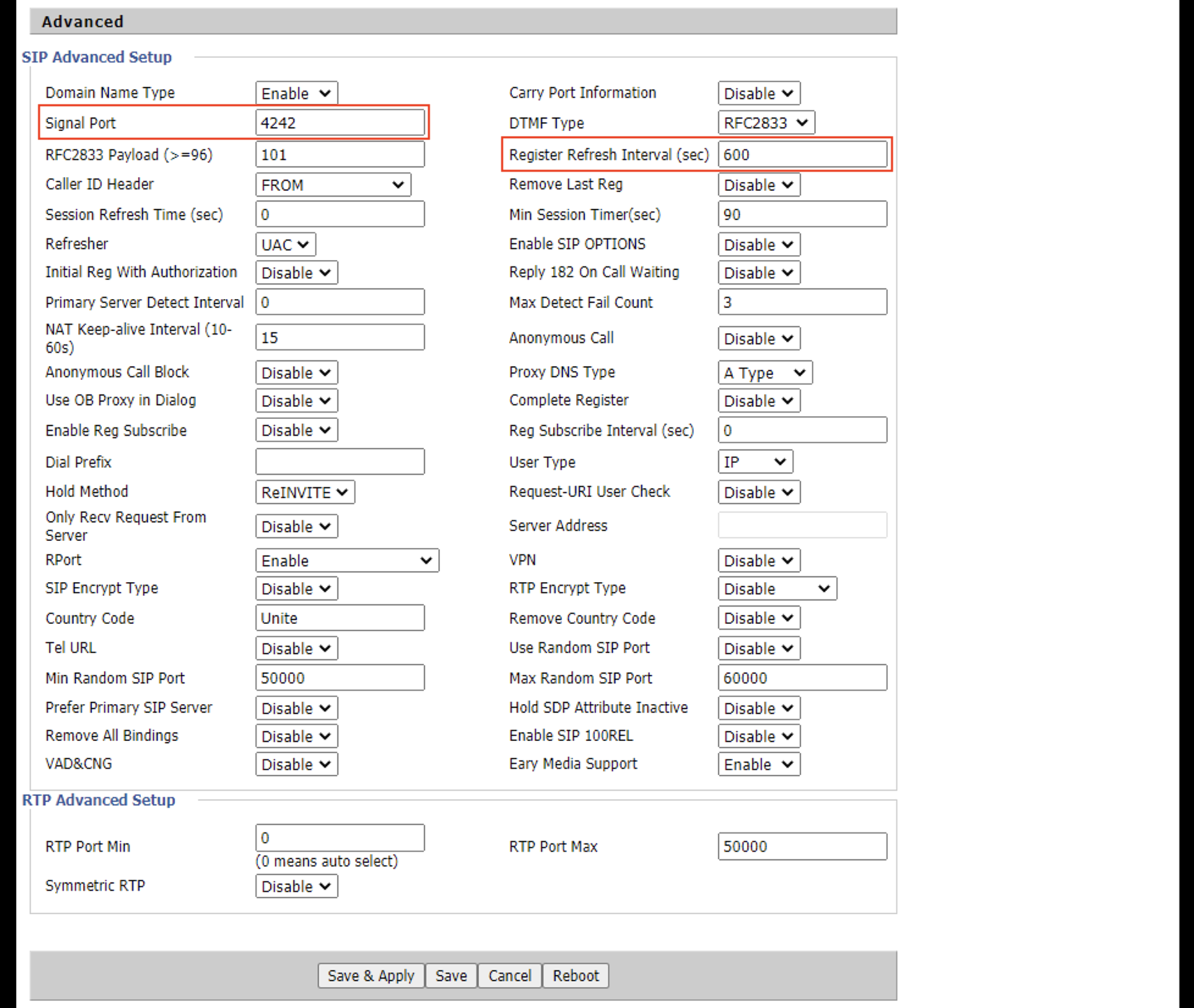

  1. Signal Port: 4242
  2. Register Refresh Interval: 600

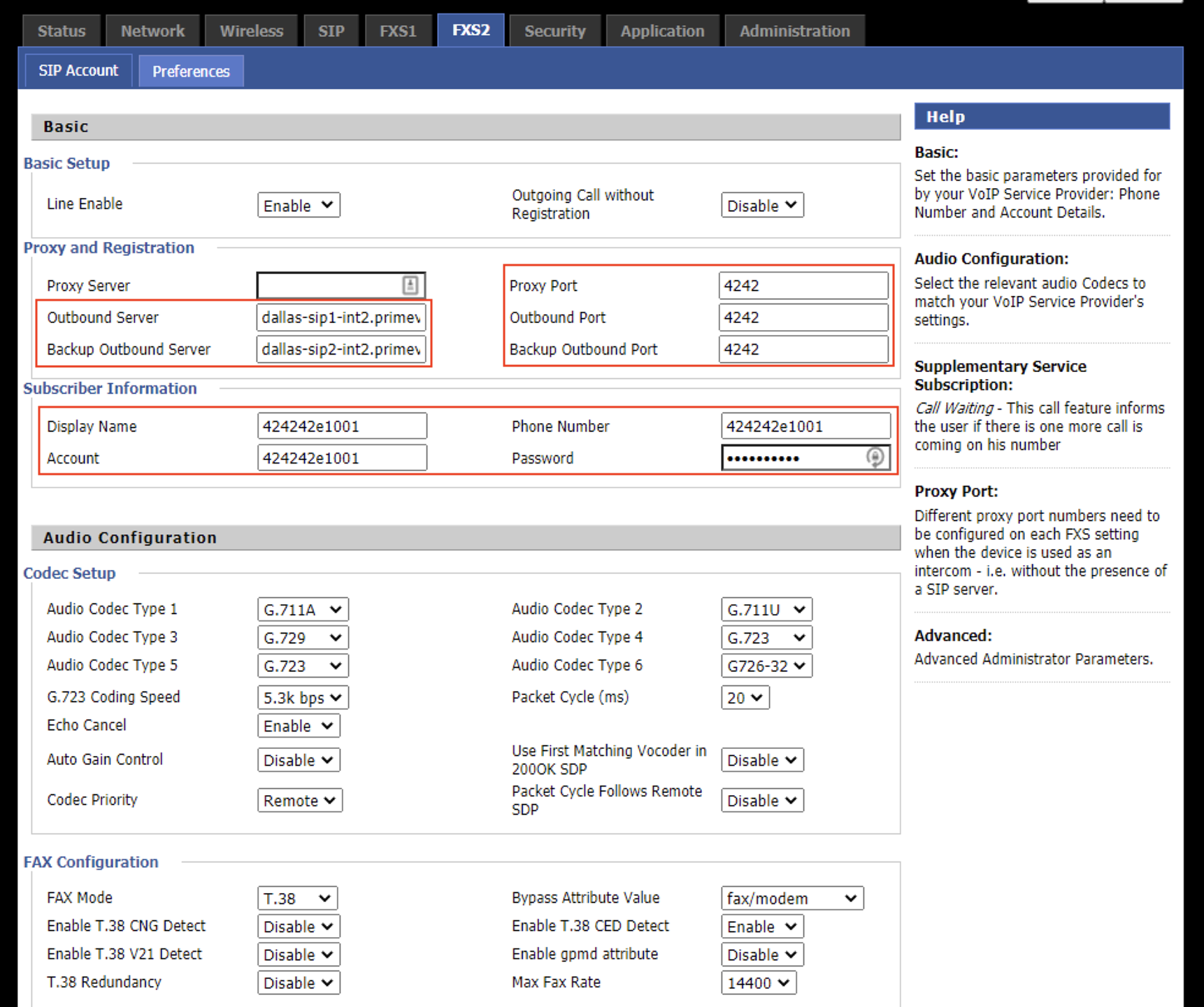

  1. Outbound Server: Use any of the "New Generation, No Redundancy" A-Records in [this article].
  2. Backup Outbound Server: Use any of the "New Generation, No Redundancy" A-Records in [this article].
  3. Outbound Port: 4242
  4. Backup Outbound Port: 4242
  5. Display Name: The SIP UserID given to you by a Primevox Technician. (Typically, the ContainerID + "e" + extension number)
  6. Account: Same as Display Name
  7. Phone Number: Same as Display Name
  8. Password: The SIP Password given to you by a Primevox Technician. (This is found in the PBX GUI when you edit an extension)
